Features

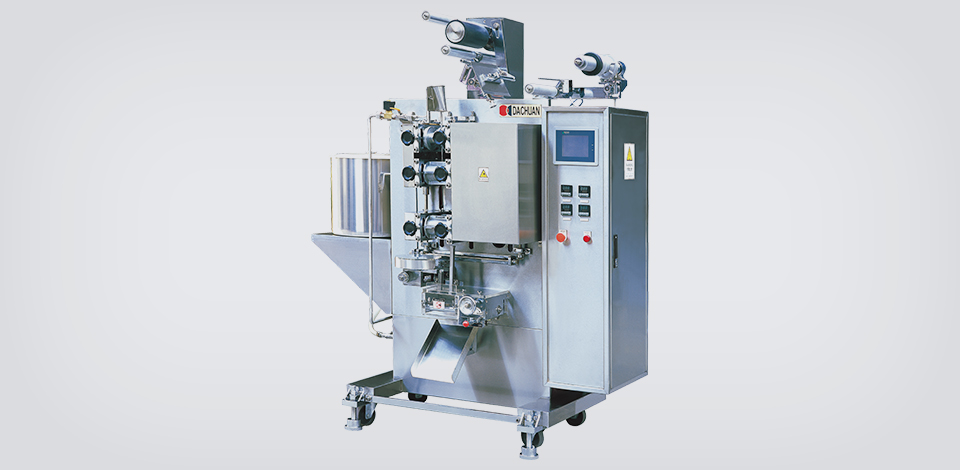

DC-338-2 is the liquid sachets forming, filling and sealing machine which adpots a 3-step roller system to achieve both 3 and 4 sides sealing.
Among such rollers, the first couples are for vertical heat sealing, second for horizontal heat seal, and third for cold seal. The vertical and horizontal sealing pattern are introduced with dotted line as well as anti-leakage design, enabling neat and tidy appearances of the come-outs.
The products go inside the sachets via magnetic pump design for any running liquids (oils and vinegars etc.). The length of the sachets can be altered flexibly without changing any accessory or mould, allowing it suited for various products in one single machine.
Three different cutting blades, straight, sawtooth and dashline, upon requests. Notch cut function supports your sachets to be applied freely.
SPECIFICATION:
Length
Width
Speed
Volume
Consumption power
Weight
40-120mm
70-180mm
40-85mm
30-120pec/min
1-60ml
3.5kw/AC380V
550KG
Suitable material
Any running liquid, like vinegar, whisky, lotion, pesticide and perfume, etc.
